RZR XP 2 Seat Flat Cage Kit

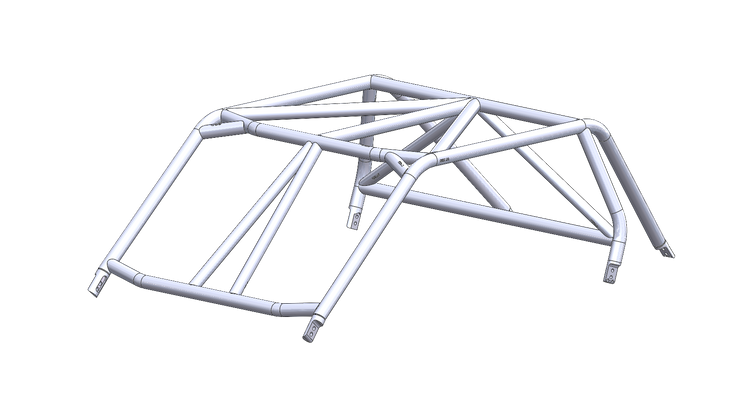

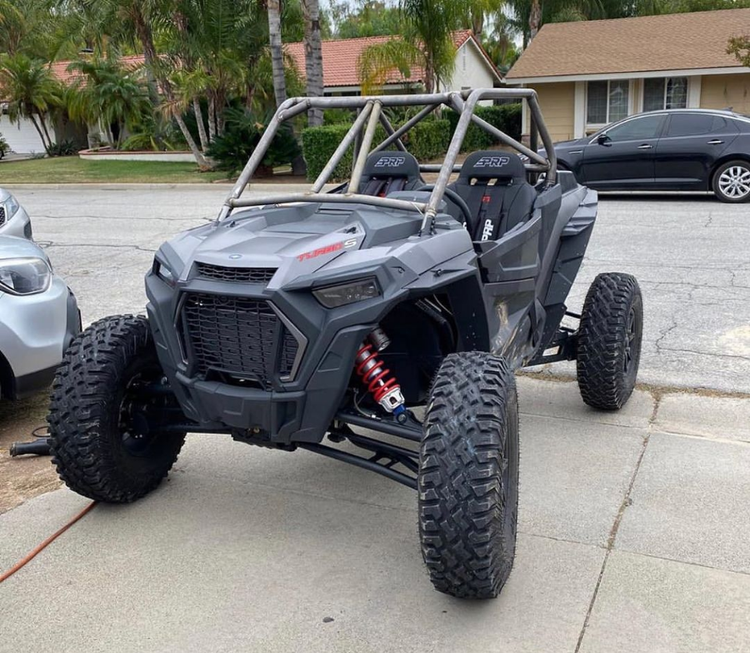

Introducing The Weld It Yourself FLAT Cage Kit For Your 2014+ Polaris XP1000 2 Seater! This Cage Is Built With .095" DOM Tubing That Can Be Either MIG Or TIG Welded Without The Use Of A Specialized Fixture - Just Install The Supplied Connectors To The Stock Cage Locations And Piece Together The Cage On The Vehicle.

INCLUDES

• 17 Laser Cut Tube Pieces With Laser Etched Part Numbers On Each Component
• 1.75" OD .095 Wall DOM Tubing For Main Structure
• 1.50" OD .095 Wall DOM Tubing For Windshield Cross Bars
• (2) A Pillar & (4) B Or C Pillar Clamps To Attach To OEM Cage Location

REQUIRES

• Welding - This Kit Can Be Welded Together Once Configured On The Vehicle

UPGRADES

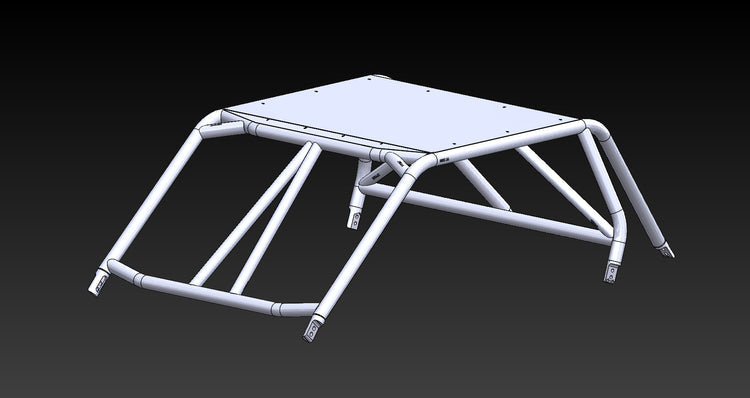

• Aluminum Roof - .06 Thick Roof W/ Small Visor Bend - Complete With Weld On Tabs And 1/4" Grade 8 Hardware
• .120 Upgrade - All Tubing Is Upgraded To  .120 Wall For Increased Strength

NOTES

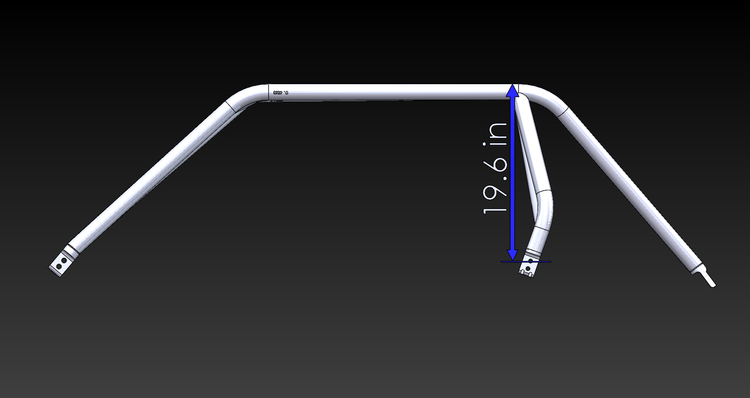

• This Cage Sits 19.6" (49.78) Tall From Center Of B Pillar Through Bolt To Highest Point On Cage
• Aluminum Roof Upgrade Is A Single Piece Of .06 Aluminum With A Slight Visor Bend Up Front To Match The Cage Radius
