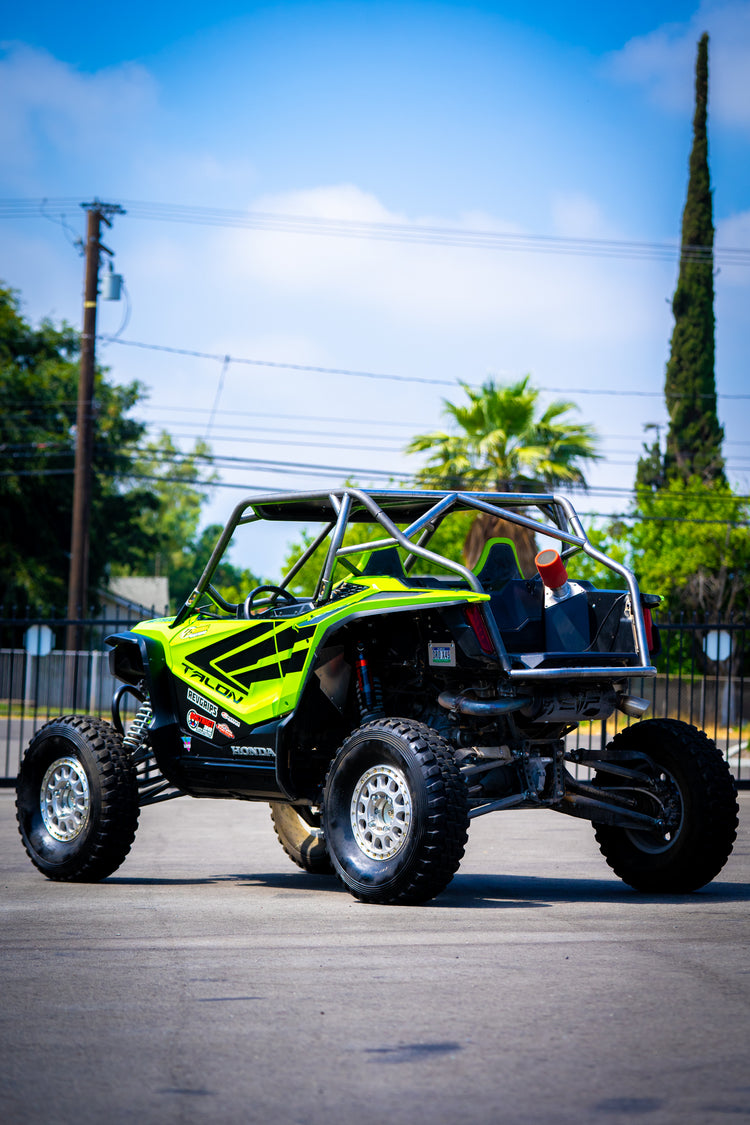

Honda Talon 2 Seat Cage Kit

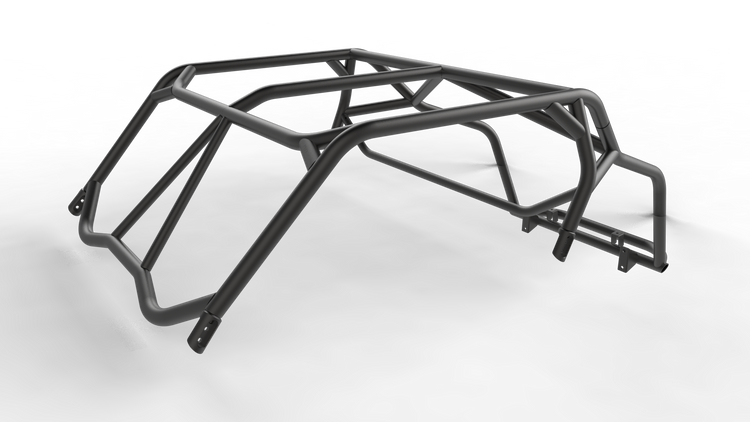

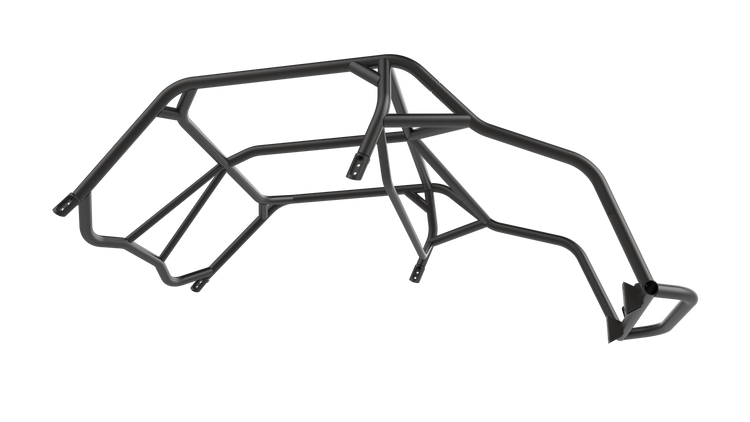

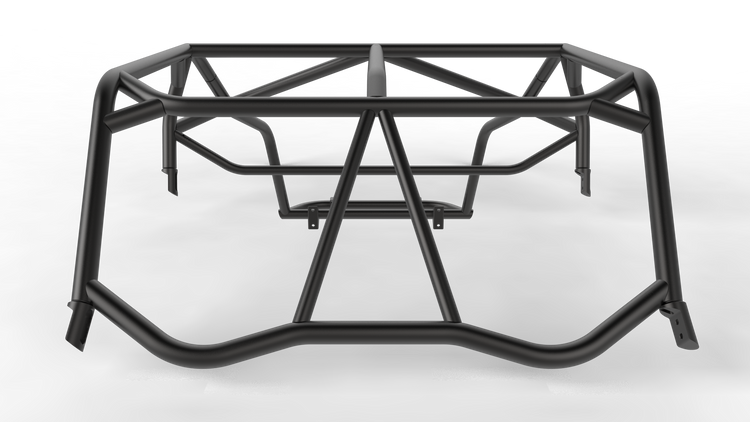

Introducing The Weld It Yourself Cage Kit For Your 2 seat Honda Talon! This Cage Is Built With .120" & .095" DOM Tubing That Can Be Either MIG Or TIG Welded Without The Use Of A Specialized Fixture - Just Install The Supplied Connectors To The Stock Cage Locations And Piece Together The Cage On The Vehicle.

INCLUDES

• 25 Laser Cut Tube Pieces With Laser Etched Part Numbers On Each Component
• 1.75" OD .120 Wall DOM Tubing For The Main Bars and B-Pillar Tubes
• 1.75" OD .095 Wall DOM Tubing For Remainder 1.75” Tubes
• 1.25" OD .095 Wall DOM Tubing For Windshield Cross Bars
• (2) A Pillar, (2) B Pillar Bungs To Attach To OEM Cage Location
• (4) Plate Brackets for rear mounting

REQUIRES

• Welding - This Kit Can Be Welded Together Once Configured On The Vehicle

UPGRADES

• Aluminum Roof - .06 Thick Roof W/ Small Visor Bend - Complete With Weld On Tabs And 1/4" Grade 8 Hardware
• Windshield Kit - Coming Soon!

NOTES

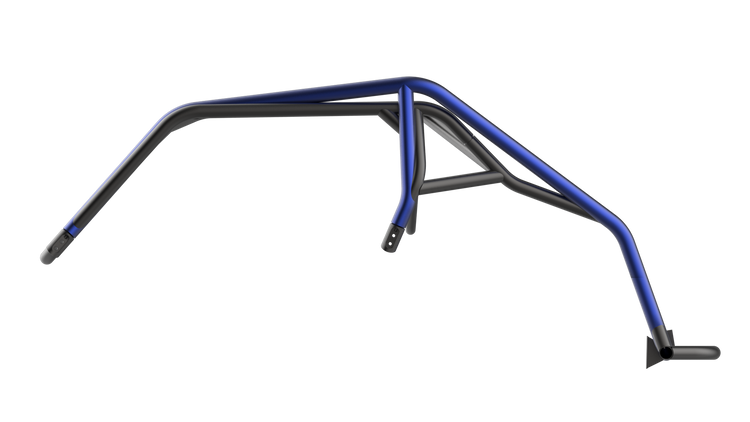

• This Cage Sits In Similar Fashion To OEM Cage, See Render With LSK Cage (Grey) Compared To OEM Cage (Blue)
• Aluminum Roof Upgrade Is A Single Piece Of .06 Aluminum With A Slight Visor Bend Up Front To Match The Cage Radius
• Must Use A Floor Jack Under Center Of Vehicle During Installation To "Level Out" The Frame Rails - Failure To Do So Will Make Aligning The Cage At The Factory Locations Difficult
